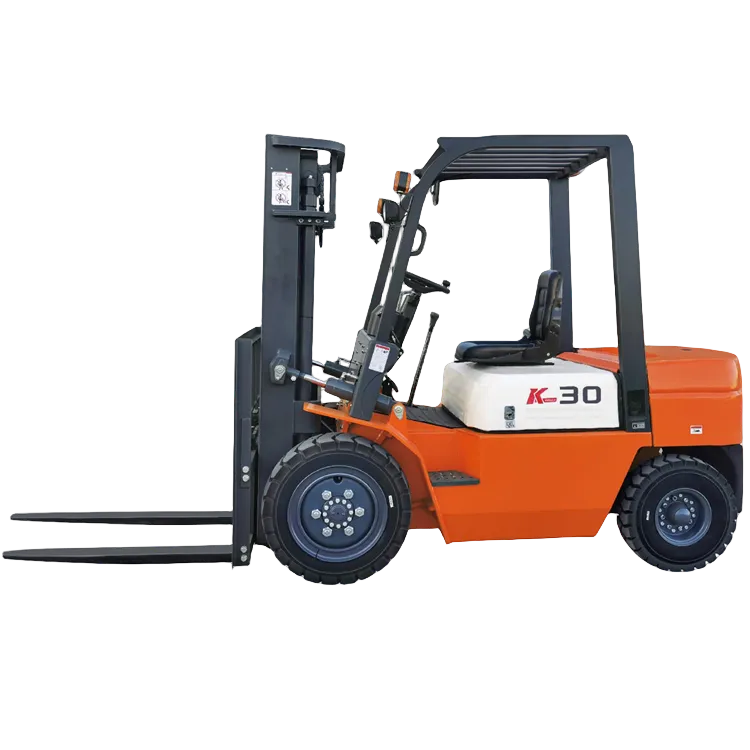

Product display
- Model:
FD30K
- Load capacity:
3000KG
- Lift Height:
3000-6000mm
- Fork Length:
1070-2000mm
- Load center::
500mm
- Engine:
XINCHAI/ISUZU/MITSUBISHI
Product advantages
With a sturdy frame and timeless exterior design, this vehicle offers clear front and rear views that greatly enhance operator visibility. Safety is prioritized at all times, thanks to these exceptional features.
With its spacious cabin and user-friendly features, the well-designed cab provides a comfortable and convenient driving experience. The joystick is conveniently located on the side for ease of handling, and the brake pedal is wide enough to allow for braking from multiple foot positions, minimizing driver fatigue. Plus, there's ample legroom, providing an extra level of comfort for those long hauls.
This highly reliable monitoring instrument is equipped with intelligent electronic capabilities. Its electrical system features a waterproof plug-in structure that improves its overall safety and reliability. These innovative design elements allow for seamless operation and provide assurances to users that they can count on this instrument day in and day out.
To enhance the efficiency and energy-saving capabilities of the vehicle, it is essential to combine top-notch transmission components with the hydraulic system. This integration of high-quality components not only improves the overall performance of the vehicle but also ensures optimal utilization of energy.
physical display
Standard Equipment >>>
Option >>>
our service
OEM
One Stop Solution
24-hour service
Technical Guidance
Two-year warranty
Except for wearing parts, reissue parts within the warranty【Support the following courier reissue 】
About us
market/market scope
Our products are widely concerned and favored by domestic and foreign customers for their beautiful appearance, high-quality and comprehensive services, safe, reliable and cost-effective, and have been successfully exported to more than 100 countries and regions around the world.
Certificate/Our honor
In terms of quality assurance, we strictly follow CE/ISO/other patent standards. Adopt a full set of industry-leading testing equipment to ensure product quality and good reputation.
logistics/payment service
Payment
Online trade assurance order, all is up to you.
More payment terms could be provided (T/T,PAYPAL, WESTERN UNION)
|
Product parameter |
|
|
|
|
|
Model |
|
FD30 |
FD35 |
FD38 |
|
Rated lifting load |
kg |
3000 |
3500 |
3800 |
|
Load center distance |
mm |
500 |
||
|
Free lifting height |
mm |
160 |
||
|
overall length ( With fork/Without fork ) |
mm |
3752/2682 |
3763/2693 |
3963/2893 |
|
Width |
mm |
1225 |
||
|
Overhead guard height |
mm |
2090 |
||
|
Wheelbase |
mm |
1700 |
||
|
Minimum ground clearance |
mm |
135 |
||
|
Mast tilt angle (front/rear) |
% |
6°/12° |
||
|
Tire no. (before) |
|
28x9-15-14PR |
||
|
Tire no. (after) |
|
6.5-10-10PR |
||
|
Minimum turning radius (outer side) |
mm |
2400 |
2420 |
2710 |
|
Minimum right angle aisle width |
mm |
4260 |
4260 |
4720 |
|
Fork size |
mm |
1070X125X45 |
1070X125X50 |
1070x150x50 |
|
maximum working speed(Full-load/No-load ) |
km/h |
18/19 |
19/19 |
|
|
maximum lifting speed(Full-load/No-load ) |
mm/s |
440/480 |
330/370 |
340/380 |
|
maximum gradeability(Full-load/No-load ) |
% |
15/20 |
||
|
Forklift weight |
kg |
4250 |
4500 |
4800 |
|
Engine model |
|
XINCHAI/ISUZU/MITSUBISHI |
||
