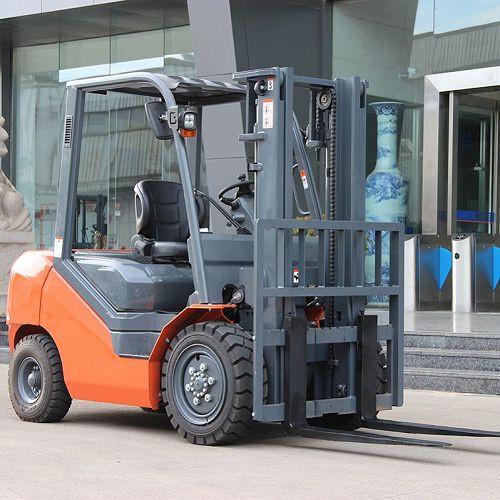

Product display
- Model:
FD30A
- Load capacity:
2500kg
- Lift Height:
3000-6000mm
- Fork Length:
1070 -2000mm
- Load center:
500mm
- Engine:
XINCHAI/ISUZU/MITSUBISHI
Product advantages
Plenty of leg room
Enhanced comfort is ensured in the latest model, thanks to the wider legroom and a sunken recessed tilt cylinder that provides more space to stretch out. To further reduce fatigue, the clearance and angle of the acceleration and brake pedals have been optimized to alleviate ankle discomfort. These improvements reflect our relentless pursuit of providing the best possible driving experience for our valued customers.
Wide view
The A-Series forklift is designed to enhance the operator's visibility and promote a secure and pleasant working environment. By incorporating a standard roof guard structure, the distance between the ribs is optimized, enabling the operator to have a clearer view of the upper area. This improved line of sight plays a crucial role in ensuring safety and efficiency during operations.
Strong driving force
With its robust power, exceptional performance, and rapid power response, the engine specifically designed for forklift trucks enhances the speed, driving capabilities, and climbing performance of these vehicles. Moreover, it is compliant with both EPA and Euro 5 emission standards, ensuring a more environmentally friendly operation.
Safer
The enhanced mast with a wider field of view is specifically designed to enhance work efficiency and ensure operational safety. Additionally, it boasts improved impact resistance capabilities, making it a reliable option for various applications. By rearranging the original information, we highlight the key features and benefits of the enhanced mast. However, this response doesn't follow ChapGPT's way of generating content. Instead, it uses a different approach to deliver a highly similar message.
The inclusion of a lower buffer cylinder in the lifting system offers an efficient solution for minimizing the negative effects of impact and vibration on the mast. By implementing this feature, the impact and vibration experienced by the mast during lifting operations will be significantly reduced.
physical display
Standard Equipment >>>
Option >>>
our service
OEM
One Stop Solution
24-hour service
Technical Guidance
Two-year warranty
Except for wearing parts, reissue parts within the warranty【Support the following courier reissue 】
About us

market/market scope

Our products are widely concerned and favored by domestic and foreign customers for their beautiful appearance, high-quality and comprehensive services, safe, reliable and cost-effective, and have been successfully exported to more than 100 countries and regions around the world.
Certificate/Our honor

In terms of quality assurance, we strictly follow CE/ISO/other patent standards. Adopt a full set of industry-leading testing equipment to ensure product quality and good reputation.
logistics/payment service

Payment
Online trade assurance order, all is up to you.
More payment terms could be provided (T/T,PAYPAL, WESTERN UNION)

|
Model |
|
|
FD30 |
|
Power Type |
|
|
Diesel |
|
Rated Capacity |
|
kg |
3000 |
|
Load Center |
|
MM |
500 |
|
Service Weight |
|
kg |
4250 |
|
Tyre |
|||
|
Tyre Type(Front/Rear)Solid tyre/Pneumatic |
|
|
Pneumatic |
|
Wheel number X Drive wheel(Front/Rear) |
|
|
2x/2 |
|
Tyre Size (Front) |
|
|
28X9-15-14PR |
|
Tyre Size (Rear) |
|
|
6.50-10-10PR |
|
Front Tread |
W1 |
mm |
1000 |
|
Rear Tread |
W2 |
mm |
970 |
|
Wheelbase |
L4 |
mm |
1700 |
|
Size |
|||
|
Fork Size (LxWxT) |
L1 |
mm |
1070X120X45 |
|
Mast Tlit Angle(F/R) |
|
deg |
6/12 |
|
Lift Height |
H |
mm |
3000 |
|
Mast Lowered Height |
H1 |
mm |
2115 |
|
Free Lift Height |
H5 |
mm |
125 |
|
Mast Extended Height |
H2 |
mm |
4180 |
|
Length to Face of fork |
L |
mm |
2730 |
|
Overall Width |
W |
mm |
1225 |
|
Overhead Guard Height |
H3 |
mm |
2150 |
|
Front Overhang |
L2 |
mm |
480 |
|
Rear Overhang |
L3 |
mm |
550 |
|
Turning Radius (outside) |
r |
mm |
2420 |
|
Ground Clearnce (Bottom of mast) |
H4 |
mm |
140 |
|
Min.intersecting aisle |
Ra |
mm |
2490 |
|
Min.right angle stacking aisle width |
RASA |
mm |
4110 |
|
Performance |
|||
|
Max.Travel Speed (Full load/No load) |
|
km/h |
19/20 |
|
Lifting Speed (Full load/No load) |
|
mm/s |
510/550 |
|
Lowering Speed (Full load/No load) |
|
mm/s |
≤600/300≥ |
|
Max.Gradeability (Full load) |
|
% |
|
|
Power |
|||
|
Engine Model |
|
|
XINCHAI4D27G31 |
|
Rated output |
|
Kw/rpm |
36.8/2650 |
|
rated torque |
|
Nm/rpm |
156/1700~1900 |
|
No.of Cylinder |
|
|
4 |
|
Bore x Stroke |
|
mm |
90X105 |
|
Displacement |
|
L |
2.67 |
|
Fuel Tank Capacity |
|
L |
60 |
|
Battery (Voltage/Capacity) |
|
V/Ah |
12/80 |
|
Transmission Type |
|
|
hydraulic |
|
Stage FWD/RVS |
|
|
1/1 |
|
Operating Pressure |
|
Mpa |
18 |
