Products Description

With its exceptional lifting capacity and exceptional mobility, the 10-ton diesel forklift proves to be the preferred choice in warehouses and construction sites. Offering superior strength and efficiency, it effortlessly transports heavy loads with speed and precision. Whether it's the need for swift transportation or efficient handling, this heavyweight forklift is the perfect solution for tackling the demands of heavy-duty scenarios.

The versatility of the 10 ton diesel forklift truck is undeniable. With its strong capability to handle different types of loads, you can easily transport anything from small boxes to bulky industrial machinery. Its power and capacity make it the perfect forklift for any warehouse or industrial setting. Whether you need to move containers, pallets or equipment, this forklift truck has got you covered. So if you're looking for a reliable and efficient material handling solution, look no further than the 10 ton diesel forklift truck.

These forklifts have been crafted to withstand rigorous use and cope with bumpy terrains without losing their operational efficiency. Their durability and reliability make them the perfect choice for businesses that value consistent performance throughout the day.

product-1269-268

A reliable hydraulic pipeline can be achieved by employing a double-seal system consisting of 24 cone connectors and O-rings. This combination ensures high reliability and efficient sealing.
One way to significantly improve the efficiency of a lifting system is by utilizing a low-loss multi-way valve. This innovative application not only increases the overall efficiency by 10% but also has the added benefit of reducing the oil temperature by 12 ºC. By rearranging the information provided, we can emphasize the positive impact of using such a valve in a lifting system.

To reduce the failure rate, a hydraulic oil cooler has been installed on the main oil return circuit. This cooler effectively lowers the temperature of the hydraulic oil. Additionally, the hydraulic oil tank's round flange on the side has been properly sealed using an O-ring. This sealing mechanism ensures that there are no leakages, further improving the overall performance of the system.

product-771-834

Integral dashboard, beautiful and generous

1.Ratchet-type parking brake for easy operation
The heat dissipation effect of the three-layer parallel composite radiator has been enhanced by 15%. This improvement has significantly boosted the efficiency of heat dissipation for this type of radiator.

product-781-291

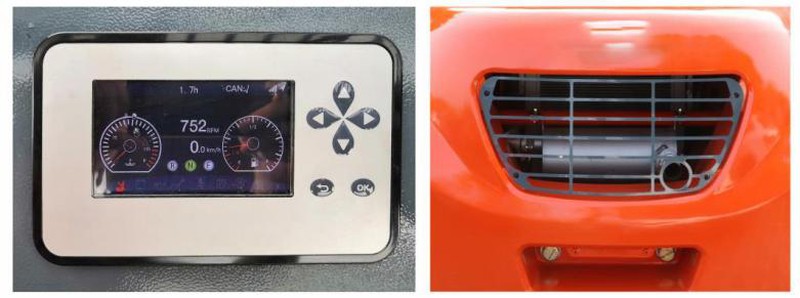

The live preview of vehicle operation information is made possible through an intelligent instrument.
2.Balanced weight net for better protection

product-774-399

With its large-capacity fuel tank, you can enjoy a longer working time without the need for frequent refueling. This feature offers greater convenience and allows you to focus more on your tasks at hand. Say goodbye to unnecessary interruptions and enjoy uninterrupted productivity for an extended period.

Trade Fair Show

J4XMK3OD0C9JNLFWUJN24S

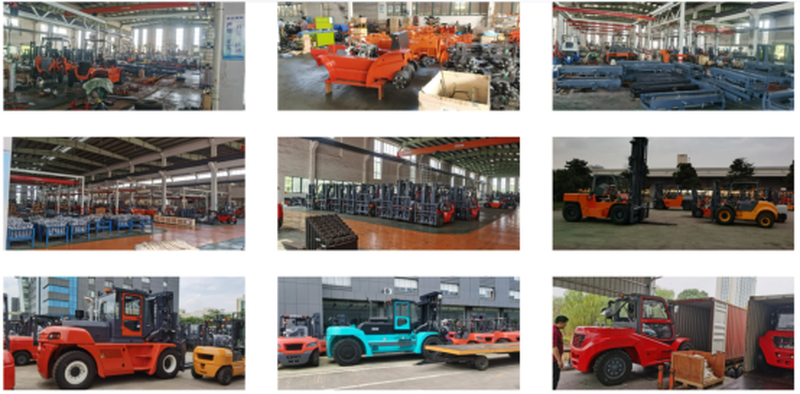

OUR WORKSHOP AND PRODUCTION LINE

R5AEWKX68H70B7M8B

	Model			FD100J	FD120J
1	Power type		kg	Diesel	Diesel
2	Rated load		mm	10000	12000
3	Load center distance		mm	600	600
4	Lift height		mm	3000	3000
5	Free lift height		mm	150	85
6	Fork size	LxWxT	mm	1370x 175x 85	1820x 17585
7	Mast tilt angle	FR/RR		8/10	8/10
8	Minimum turning radius		mm	4280	4350
9	Minimum right angle stacking aisle width		mm	6307	8250
10	Minimum right angle aisle width		mm	4140	3877
11	Minimum ground clearance	Frame center(no load)		340	406
12	Minimum ground clearance	Mast Bottom ( no load )	mm	232	260
13	Height of overhead guard		mm	2600	2650
14	Overhang(FR)		mm	727	757
15	Maximum travel speed	Full load	km/h	20	26
16	Maximum travel speed	No load	km/h	24	28
17	Maximum lift speed	Full load	mm/s	350	286
18	Maximum lift speed	No load	mm/s	370	305
19	Maximum drawbar pull	Full load	KN	60	112
20	Gradeability		%	20	20
21	Overall length	Without forks	mm	4252	4528
22	Overall width		mm	2268	2530
23	Fork height at maximum lift(with backrest)		mm	4280	4655
24	Mast height		mm	2845	3230
25	Tires	Front wheel		9.00-20-14PR	10.00-20-18PR
26	Tires	Rear wheel		9.00-20-14PR	10.00-20-18PR
27	Wheelbase		mm	2800	2950
28	Tread	Front wheel/rear wheel	mm	1600/1700	1674/1890
29	Self weight	Without load	kg	13640	16000
30	Battery	Voltage/capacity	V/Ah	24/160
31	Fuel tank capacity		L	200	215
32	Transmissions(FWD/RWD)
33	Operating pressure		Mpa	19.5
34	Tire type(FR/RR)			Pneumatic	Pneumatic
35	Number of wheels(FR/RR)		Pcs	4/2	4/2
36	Lowering speed(full load)		mm/s	410	383
37	Lowering speed(no load)		mm/s	320	330
38	Axle load distribution(full load)(FR/RR)		kg	21400/2420	25175/2825
39	Axle load distribution(fno load)(FR/RR)		kg	6160/7480	6435/9565

Calculafion of minimum right angle stacking cisle width: Pallet size: 1100mmx1100mm, total clearance(FR/RR):100mm
