Product display
- Model:
FB20Q
- Load capacity:
2000kg
- Lift Height:
3000-6000mm
- Fork Length:
1070-2000mm
- Load center:
500mm
Product advantages

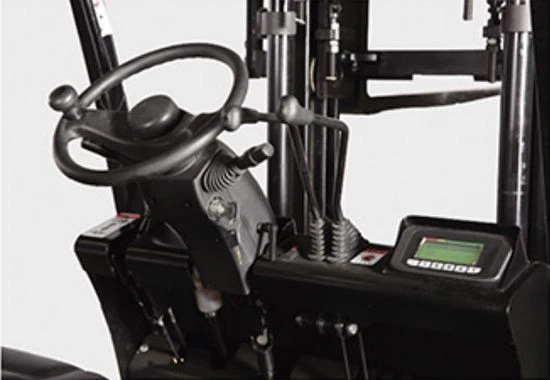

The design of the controls is ergonomic, with a right hand control lever that is convenient to use. The steering wheel is also designed with convenient knobs for easy maneuverability.
OPS seats are designed to provide maximum comfort and safety for users, with the inclusion of suspension seats in the design. These seats are specifically engineered to absorb shock and vibrations, resulting in reduced fatigue and increased stability for those who use them. By prioritizing both comfort and safety in the design of OPS seats, manufacturers aim to ensure that users can remain focused and alert while operating equipment or vehicles for extended periods of time. With their emphasis on ergonomic design, OPS seats offer an ideal solution for those who require sustained performance and reliability in demanding environments.
With LED lighting systems, the front and rear of the vehicle are equipped for increased brightness and a longer lifespan. Let's generate a highly similar content by rearranging the above information.

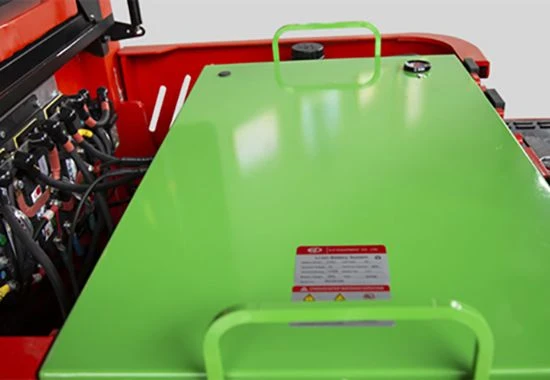

You have the choice of a maintenance-free lead-acid battery or a dependable lithium battery that prioritizes safety. These options are both based on the original text information and offer peace of mind when it comes to power.
physical display
Standard Equipment >>>
Option >>>
our service
OEM
One Stop Solution
24-hour service
Technical Guidance
Two-year warranty
Except for wearing parts, reissue parts within the warranty【Support the following courier reissue 】
About us
market/market scope
Our products are widely concerned and favored by domestic and foreign customers for their beautiful appearance, high-quality and comprehensive services, safe, reliable and cost-effective, and have been successfully exported to more than 100 countries and regions around the world.
Certificate/Our honor
In terms of quality assurance, we strictly follow CE/ISO/other patent standards. Adopt a full set of industry-leading testing equipment to ensure product quality and good reputation.
logistics/payment service
Payment
Online trade assurance order, all is up to you.
More payment terms could be provided (T/T,PAYPAL, WESTERN UNION)
|
Model |
|
FB20Q |
|
Drive mode |
|
Electric |
|
Type of operation |
|
Seated |
|
Load capacity/rated load |
kg |
2000 |
|
Load centre distance |
mm |
500 |
|
Load distance,centre of drive axle to fork |
mm |
463 |
|
Wheel base |
mm |
1500 |
|
Service weight incl. battery |
kg |
4010 |
|
Axle loading ,laden front/rear |
kg |
5310/700 |
|
Axle loading,unladen front/rear |
kg |
2000/2010 |
|
Tires Type |
|
pneumatic |
|
Tires size,front |
|
23x9-10-18PR |
|
Tires size,rear |
|
18x7-8-14PR |
|
Wheels,number front/rear(×=driven wheels) |
|
2/2 |
|
Track width,front |
mm |
1040 |
|
Track width,rear |
mm |
950 |
|
Mast/fork carriage tilt forward/backward |
deg |
6/10 |
|
lowered mast height |
mm |
2045 |
|
Free lift |
mm |
120 |
|
Lift height |
mm |
3000 |
|
Extended mast height |
mm |
3977 |
|
Overhead load guardheight |
mm |
2190 |
|
Seat height/standing height |
mm |
1100 |
|
Coupling height |
mm |
295 |
|
Overall length |
mm |
3393 |
|
Length to face of forks |
mm |
2323 |
|
Overall width |
mm |
1260 |
|
Fork dimensions |
mm |
40x120x1070 |
|
Fork carriage width |
mm |
1040 |
|
Ground clearance ,laden,under mast |
mm |
110 |
|
Ground clearance,centre of wheelbase |
mm |
120 |
|
Aisle width for pallets 1000×1200 crossways |
mm |
3583 |
|
Aisle width for pallets 800×1200 lengthways |
mm |
3713 |
|
Turning radius |
mm |
2050 |
|
Travel speed,laden/unladen |
km/h |
13/14 |
|
Lift speed,laden/unladen |
m/s |
0.31/0.40 |
|
lowering speed,laden/unladen |
m/s |
<0.6 |
|
Service brake |
|
Hydraulic |
|
Drive motor rating |
kw |
11 |
|
Lift motor rating |
kw |
8.6 |
|
Battery standard |
|
BS |
|
Battery voltage,nominal capacity |
V/Ah |
48/600/630/700/770 |
|
Battery weight |
kg |
947 |
|
Battery dimensions I/w/h |
mm |
980x538x760 |
|
Type of drive control |
|
AC |
|
Operating pressure for attachments |
Mpa |
17.5 |
|
Oil volume for attachments |
l/min |
36 |
|
Sound level at driver's ear according to EN 12 053 |
dB(A） |
72 |
