Product display
- Model:
FD35F
- Load capacity:
3500kg
- Lift Height:
3000-6000mm
- Fork Length:
1220-2200
- Load center:
500mm
- Engine:
XINCHAI/ISUZU/MITSUBISHI
Product advantages
The rough terrain diesel forklift truck is specifically built to withstand challenging outdoor conditions. Its low center of gravity ensures outstanding stability, even on uneven surfaces. This rugged vehicle is equipped with a two-stage air filter that offers exceptional air purification capabilities.
The off-road vacuum tire is designed with a large size and deep pattern, providing exceptional off-road capability and excellent shock absorption.
By employing a wider mast design, the field of view for the driver is significantly expanded, enabling them to see and react to obstacles and potential hazards with greater ease. Additionally, the use of a suspension seat greatly reduces driver fatigue, ensuring that operators remain alert and productive throughout long shifts. These features work in tandem to enhance both safety and efficiency in warehouse and industrial settings.
In order to comply with the Euro 5 and EPA emission requirements, significant power enhancements are necessary. These enhancements will enable the vehicle to possess a high level of power while still meeting the stringent emission standards set by the Euro 5 and EPA regulations. The focus must be on developing an engine design that not only delivers exceptional performance but also ensures minimal environmental impact. By implementing innovative technologies and engineering solutions, manufacturers can successfully create vehicles that are both powerful and environmentally friendly. Adhering to these emission standards is crucial in promoting sustainable transportation and reducing harmful pollutants released into the atmosphere.

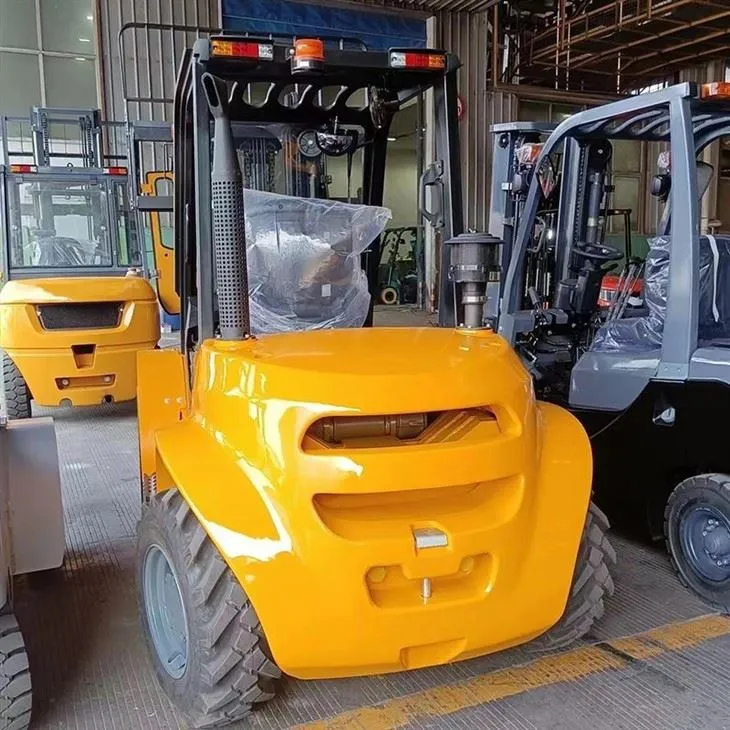

physical display
Standard Equipment >>>
Option >>>
our service
OEM
One Stop Solution
24-hour service
Technical Guidance
Two-year warranty
Except for wearing parts, reissue parts within the warranty【Support the following courier reissue 】
About us
market/market scope
Our products are widely concerned and favored by domestic and foreign customers for their beautiful appearance, high-quality and comprehensive services, safe, reliable and cost-effective, and have been successfully exported to more than 100 countries and regions around the world.
Certificate/Our honor
In terms of quality assurance, we strictly follow CE/ISO/other patent standards. Adopt a full set of industry-leading testing equipment to ensure product quality and good reputation.
logistics/payment service
Payment
Online trade assurance order, all is up to you.
More payment terms could be provided (T/T,PAYPAL, WESTERN UNION)
|
Model |
|
FD35-F |
|
Driving mode |
|
Diesel |
|
Rated Capacity |
kg |
3500 |
|
Load Centre |
mm |
500 |
|
Service weight |
kg |
5080 |
|
Tyre Type (Front/Rear) |
|
Pneumatic |
|
Wheel number X= drive wheel (Front/Rear) |
|
2X/2X |
|
Tyre Size (Front) |
|
14-17.5-14PR |
|
Tyre Size (Rear) |
|
10.0/75-15.3-12PR |
|
Front Tread |
mm |
1217 |
|
Rear Tread |
mm |
1206 |
|
Wheelbase |
mm |
1920 |
|
Fork Size (LxWxT) |
mm |
1220x120x45 |
|
Mast Tilt Angle (F/R) |
deg |
10/12 |
|
Lift Height |
mm |
3000 |
|
Mast Lowered Height |
mm |
2265 |
|
Free Lift Height |
mm |
165 |
|
Mast Extended Helght |
mm |
4342 |
|
Length to Face of Fork |
mm |
3110 |
|
Overall Width |
mm |
1560 |
|
Overhead Guard Height |
mm |
2260 |
|
Front Overhang |
mm |
580 |
|
Rear Overhang |
mm |
610 |
|
Turning Radius (outside) |
mm |
3200 |
|
Ground Clearance (Bottom of mast) |
mm |
270 |
|
Min.intersecting aisle |
mm |
2780 |
|
Min.right angle stacking aisle width |
mm |
5200 |
|
Max.Travel Speed (Full load/No load) |
km/h |
20/21 |
|
Lifting Speed (Full load/No load) |
mm/s |
510/550 |
|
Lowering Speed (Full load/No load) |
mm/s |
≤600/≥300 |
|
Max.Gradeability (Full load) |
% |
50 |
|
Engine Model |
|
China Engine Japan Engine |
|
Rated output |
Kw/rpm |
36.8/2500 |
|
Rated torque |
Nw/rpm |
186/1600-1800 |
|
No.of Cylinder |
|
4 |
|
Bore x Stroke |
mm |
98x105 |
|
Displacement |
L |
3.167 |
|
Fuel Tank Capacity |
L |
60 |
|
Battery (Voltage/Capacity) |
V/Ah |
12/80 |
|
Transmission Type |
|
hydraulic |
|
Operating Pressure |
Mpa |
18 |
