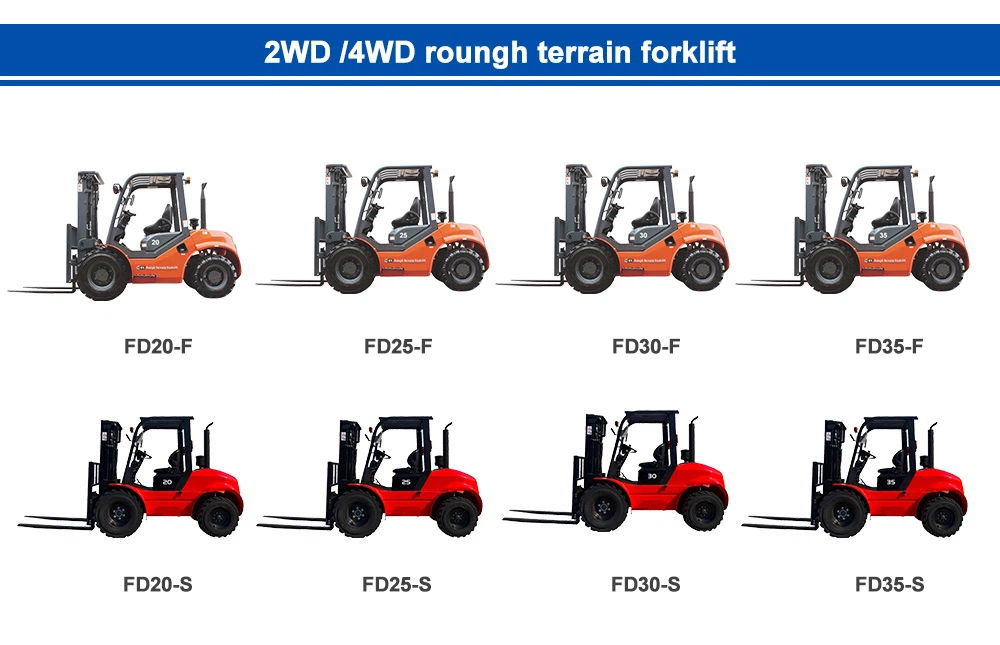

Product display
- Model:
FD30F
- Load capacity:
3000kg
- Lift Height:
3000-6000mm
- Fork Length:
1220-2200
- Load center:
500mm
- Engine:
XINCHAI/ISUZU/MITSUBISHI
Product advantages
The diesel forklift truck for rough terrain is specifically engineered to withstand harsh outdoor conditions. Its low center of gravity ensures exceptional stability while operating. Additionally, it is equipped with a two-stage air filter that possesses remarkable air purification capabilities.
This off-road vacuum tire features a deep pattern and larger size, providing outstanding shock absorption and off-road capability.
By incorporating a wider mast design in our vehicles, we're able to give our drivers a wider field of view while on the road. As an added bonus, our suspension seats are designed to reduce driving fatigue and improve overall comfort during long hauls.
With the aim of meeting the requirements of Euro 5 and EPA emission standards, we have developed a powerful engine that can deliver outstanding performance. This engine is designed to be highly efficient while maintaining low emissions, so it is both environmentally friendly and powerful enough to meet the demands of modern vehicles. We are proud to offer this technology to customers who are looking for a superior driving experience while also being conscious of their impact on the environment. Our commitment to innovation and sustainability is reflected in this engine, which sets new standards for both performance and emissions.

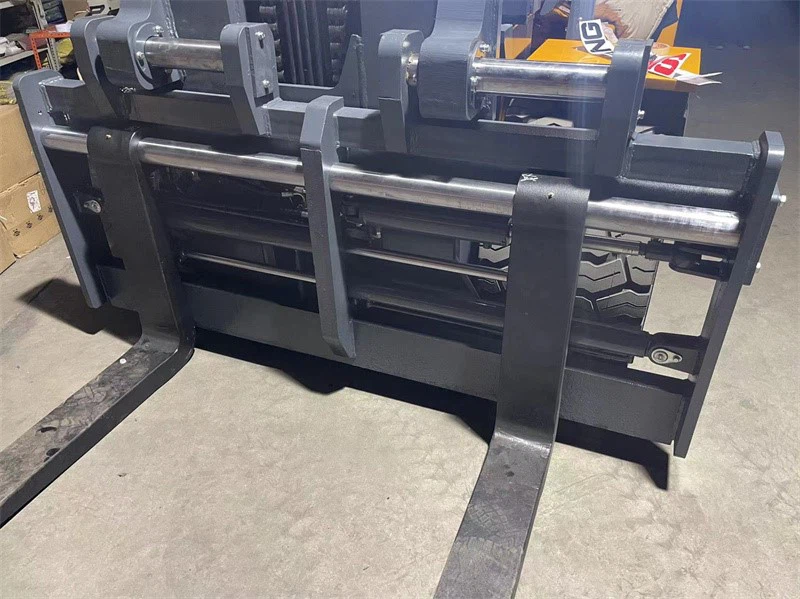

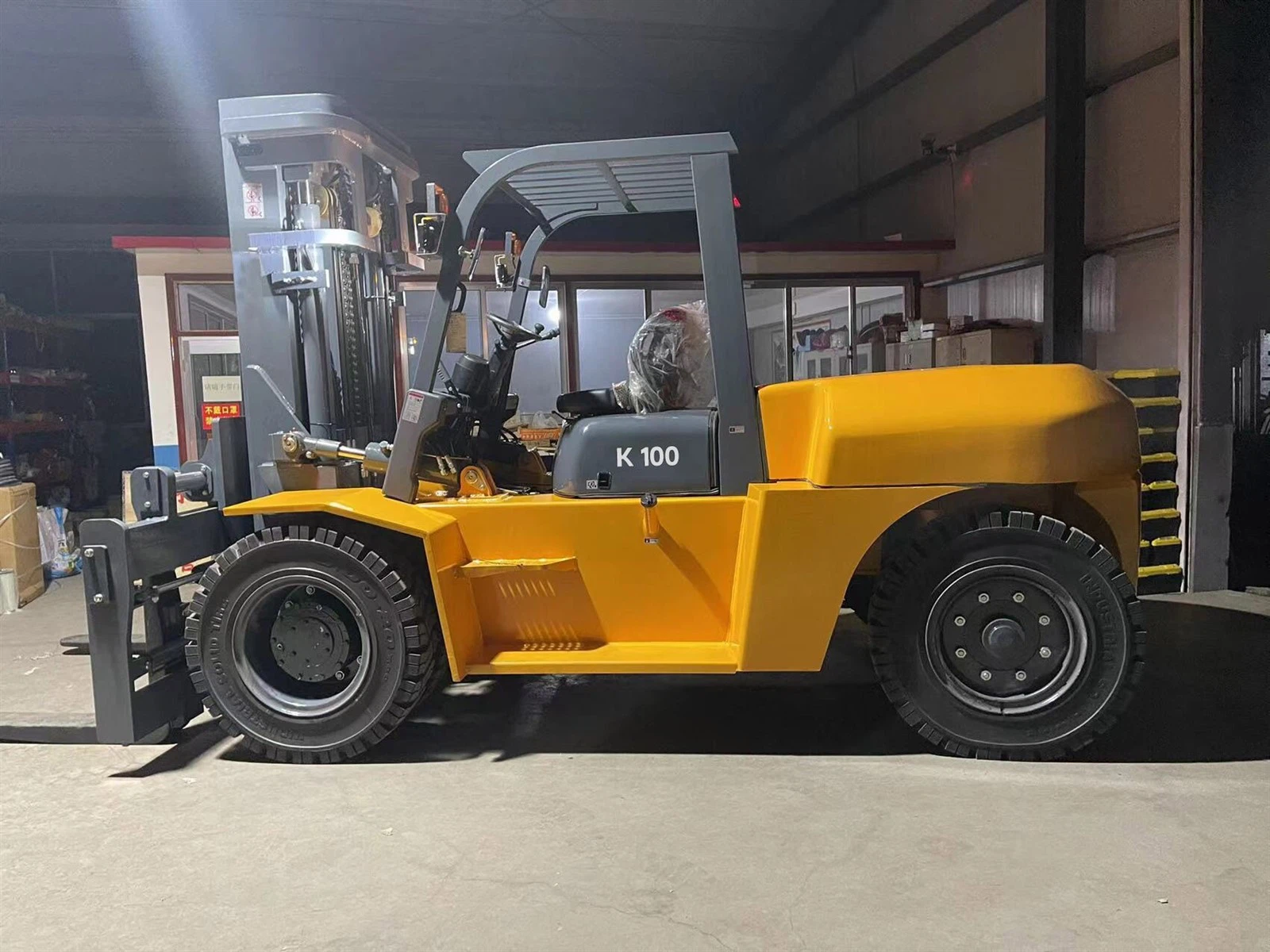

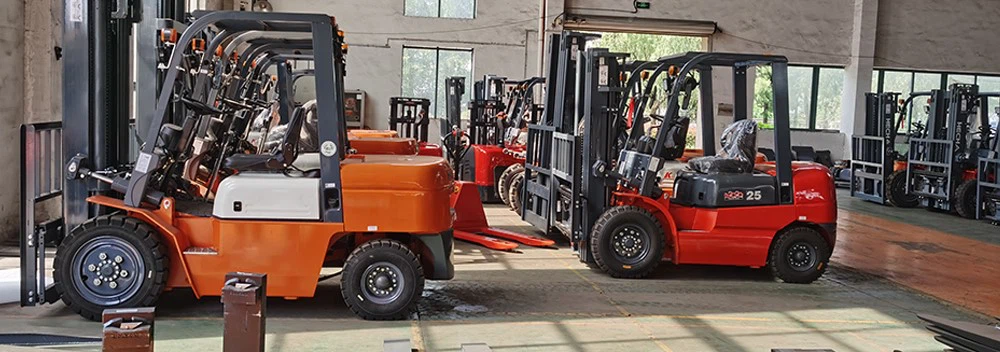

physical display
Standard Equipment >>>
Option >>>
our service
OEM
One Stop Solution
24-hour service
Technical Guidance
Two-year warranty
Except for wearing parts, reissue parts within the warranty【Support the following courier reissue 】
About us
market/market scope
Our products are widely concerned and favored by domestic and foreign customers for their beautiful appearance, high-quality and comprehensive services, safe, reliable and cost-effective, and have been successfully exported to more than 100 countries and regions around the world.
Certificate/Our honor
In terms of quality assurance, we strictly follow CE/ISO/other patent standards. Adopt a full set of industry-leading testing equipment to ensure product quality and good reputation.
logistics/payment service
Payment
Online trade assurance order, all is up to you.
More payment terms could be provided (T/T,PAYPAL, WESTERN UNION)
|
Model |
|
FD30-F |
|
Driving mode |
|
Diesel |
|
Rated Capacity |
kg |
3000 |
|
Load Centre |
mm |
500 |
|
Service weight |
kg |
5080 |
|
Tyre Type (Front/Rear) |
|
Pneumatic |
|
Wheel number X= drive wheel (Front/Rear) |
|
2X/2X |
|
Tyre Size (Front) |
|
14-17.5-14PR |
|
Tyre Size (Rear) |
|
10.0/75-15.3-12PR |
|
Front Tread |
mm |
1217 |
|
Rear Tread |
mm |
1206 |
|
Wheelbase |
mm |
1920 |
|
Fork Size (LxWxT) |
mm |
1220x120x45 |
|
Mast Tilt Angle (F/R) |
deg |
10/12 |
|
Lift Height |
mm |
3000 |
|
Mast Lowered Height |
mm |
2265 |
|
Free Lift Height |
mm |
165 |
|
Mast Extended Helght |
mm |
4342 |
|
Length to Face of Fork |
mm |
3110 |
|
Overall Width |
mm |
1560 |
|
Overhead Guard Height |
mm |
2260 |
|
Front Overhang |
mm |
580 |
|
Rear Overhang |
mm |
610 |
|
Turning Radius (outside) |
mm |
3200 |
|
Ground Clearance (Bottom of mast) |
mm |
270 |
|
Min.intersecting aisle |
mm |
2780 |
|
Min.right angle stacking aisle width |
mm |
5200 |
|
Max.Travel Speed (Full load/No load) |
km/h |
20/21 |
|
Lifting Speed (Full load/No load) |
mm/s |
510/550 |
|
Lowering Speed (Full load/No load) |
mm/s |
≤600/≥300 |
|
Max.Gradeability (Full load) |
% |
50 |
|
Engine Model |
|
China Engine Japan Engine |
|
Rated output |
Kw/rpm |
36.8/2500 |
|
Rated torque |
Nw/rpm |
186/1600-1800 |
|
No.of Cylinder |
|
4 |
|
Bore x Stroke |
mm |
98x105 |
|
Displacement |
L |
3.167 |
|
Fuel Tank Capacity |
L |
60 |
|
Battery (Voltage/Capacity) |
V/Ah |
12/80 |
|
Transmission Type |
|
hydraulic |
|
Operating Pressure |
Mpa |
18 |
