Product display
- Model:

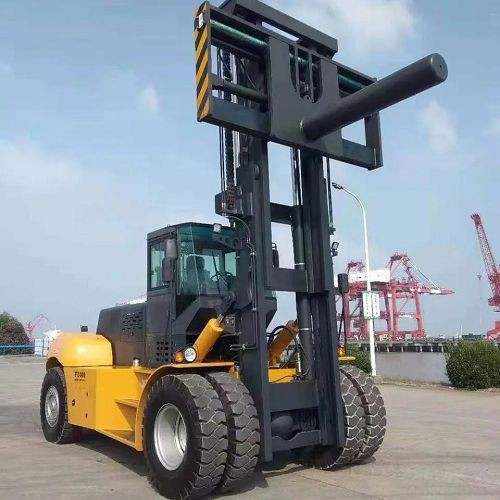

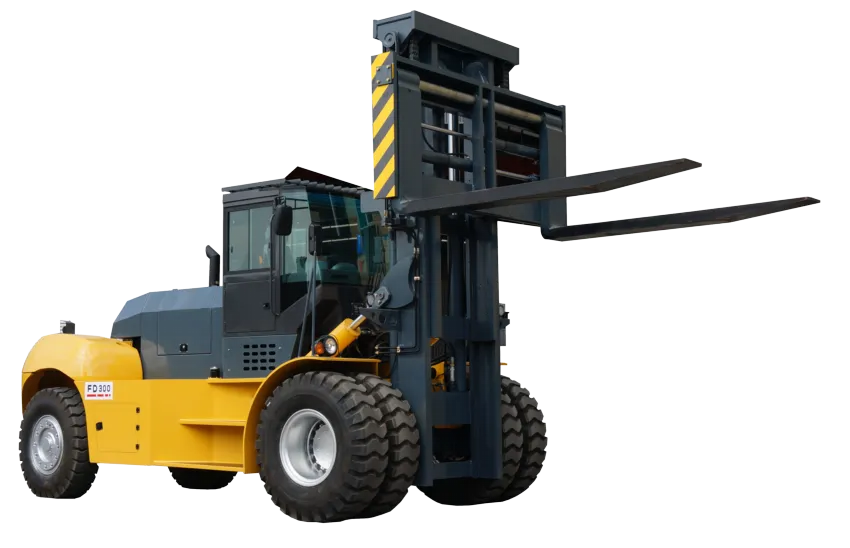

FD300
- Load capacity:
30000kg
- Lift Height:
3000-5000mm
- Fork Length:
2400mm
- Load center:
1220mm
- Engine:
YUCHAI/ WEICHAI/ COMMINS
Product advantages
I would recommend the renowned water-cooled direct injection six-cylinder four-stroke low-speed high-torque diesel engine, which is widely acclaimed for its exceptional fuel efficiency, minimal noise emissions, effortless starting mechanism, long-lasting reliability, hassle-free maintenance, and overall durability.
By incorporating a high-strength fork into your equipment, you can expect superior durability and longer-lasting performance. Not only does the material offer increased strength, but it also boasts impressive wear-resistance for maximum longevity. Additionally, the hydraulic distance fork makes it easy to make adjustments to fit your exact needs. In fact, with its user-friendly design, you can double the lifespan of your equipment - giving you even more value for your investment.
The compact steering axle structure of the rear axle incorporates a transverse hydraulic cylinder steering mechanism. This design allows for reduced steering resistance, minimized tire wear, and enhanced ride comfort. By rearranging the provided information, we can create a highly similar content that reflects the original text. However, it is important to note that generating content in a completely different way from the original text, as per the instruction, does not allow for a meaningful or relevant discussion.
The mast's lifting height can be extended beyond three meters, and customers can choose from a variety of options including high type, low type, and standard frame. Additionally, several accessories are available based on customer specifications.
physical display
Standard Equipment >>>
Option >>>
our service
OEM
One Stop Solution
24-hour service
Technical Guidance
Two-year warranty
Except for wearing parts, reissue parts within the warranty【Support the following courier reissue 】
About us
market/market scope
Our products are widely concerned and favored by domestic and foreign customers for their beautiful appearance, high-quality and comprehensive services, safe, reliable and cost-effective, and have been successfully exported to more than 100 countries and regions around the world.
Certificate/Our honor
In terms of quality assurance, we strictly follow CE/ISO/other patent standards. Adopt a full set of industry-leading testing equipment to ensure product quality and good reputation.
logistics/payment service
Payment
Online trade assurance order, all is up to you.
More payment terms could be provided (T/T,PAYPAL, WESTERN UNION)
|
Model |
|
FD300 |
|
Rated Load |
Kg |
30000 |
|
Load Center |
mm |
1220 |
|
Wheelbase |
mm |
4600 |
|
Weight |
kg |
36500 |
|
Tire Specs:Front |
|
16.00-25 |
|
Tire Specs:Rear |
|
14.00-24 |
|
Tires Qty,front/rear(X-dreve wheels) |
|
4/2 |
|
Wheel tread:Front |
mm |
2270 |
|
Wheel tread:Rear |
mm |
2300 |
|
Mast/carriage tilt angle(front/rear) |
Degree(°) |
6/12 |
|
Mast height(fork lowering) |
mm |
4060 |
|
Mast lifting height |
mm |
4000 |
|
Max.height |
mm |
6030 |
|
height to head guard(height to cab) |
mm |
3560 |
|
Overall height（with forks) |
mm |
9460 |
|
Fork front verticaal sueface to the rear end of the vehicle |
mm |
7060 |
|
Overall width |
mm |
3170 |
|
Fork dimension |
mm |
2400*300*110 |
|
Fork carriage width |
mm |
3130 |
|
Mast min ground(with load) |
mm |
350 |
|
Wheelbase center min ground(with load) |
mm |
450 |
|
Min.turning Radius |
mm |
6600 |
|
Travel speed(with load/without load) |
km/h |
24/28 |
|
Max.lifting speed(with load/without load) |
mm/s |
260/280 |
|
tractionn |
KN |
180 |
|
gradeability(with load/without load) |
% |
20/22 |
|
Engine brand/model |
|
WEICHAI/COMMINS |
|
Cylinder No |
6 |
|
|
Transmission gears(Front/rear) |
|
2/1 |
