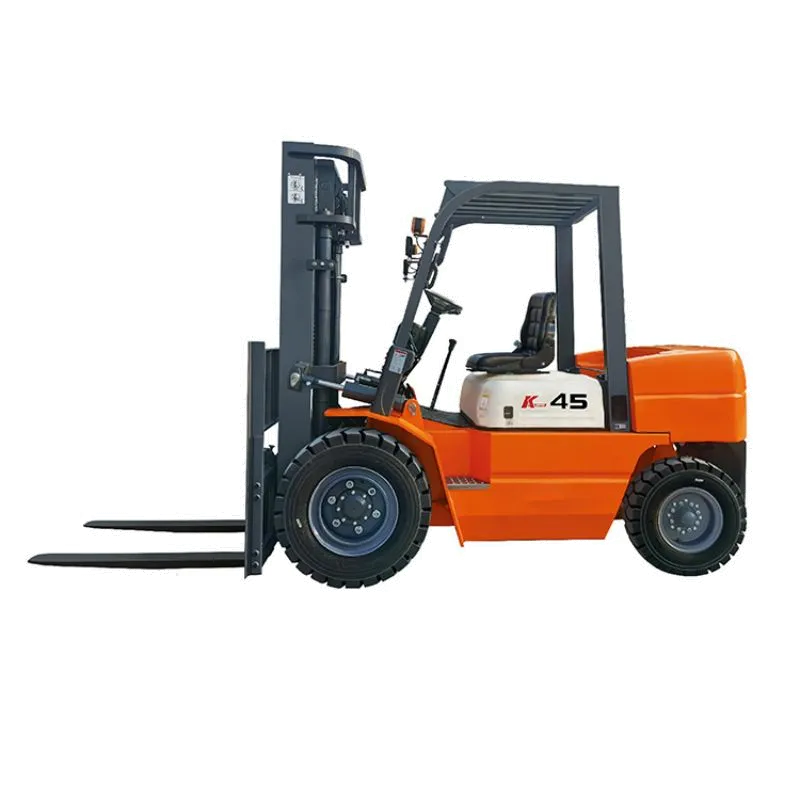

Product display
- Model:
FD45K
- Load capacity:
4500KG
- Lift Height:
3000-6000mm
- Fork Length:
1070-2000mm
- Load center:
500mm
- Engine:
XINCHAI/ISUZU/MITSUBISHI
Product advantages
With a robust frame and timeless exterior design, the ample front and rear views on this vehicle guarantee top-notch visibility for operators, securing their safety every step of the way.
A spacious and ergonomic cab is a key feature of this model, providing ample legroom for improved comfort on long drives. The joystick is strategically positioned on the side for enhanced maneuverability, making it easier to navigate through tight spaces. Additionally, the wide brake pedal allows for efficient braking from multiple foot positions, which helps reduce fatigue during extended periods of driving. These design elements combine to create a more user-friendly experience for drivers, without compromising on functionality or safety.
An advanced electronic monitoring device that offers exceptional reliability is now available. This intelligent instrument is designed with a highly reliable electrical system, which incorporates a waterproof sealing plug-in structure. This innovative feature not only enhances the overall safety of the device but also improves its reliability.
Matching high-quality transmission components with the hydraulic system can significantly enhance the efficiency and energy efficiency of a vehicle. By ensuring that the components work together seamlessly, the vehicle can reduce the amount of energy required during operation and improve its overall performance. This approach is particularly beneficial for heavy-duty vehicles, which are often subjected to harsh operating conditions and require robust solutions to deliver optimal results. Therefore, investing in high-quality transmission components and matching them with a hydraulic system is a vital step towards achieving a more efficient and sustainable future for the automotive industry.
physical display
Standard Equipment >>>
Option >>>
our service
OEM
One Stop Solution
24-hour service
Technical Guidance
Two-year warranty
Except for wearing parts, reissue parts within the warranty【Support the following courier reissue 】
About us
market/market scope
Our products are widely concerned and favored by domestic and foreign customers for their beautiful appearance, high-quality and comprehensive services, safe, reliable and cost-effective, and have been successfully exported to more than 100 countries and regions around the world.
Certificate/Our honor
In terms of quality assurance, we strictly follow CE/ISO/other patent standards. Adopt a full set of industry-leading testing equipment to ensure product quality and good reputation.
logistics/payment service
Payment
Online trade assurance order, all is up to you.
More payment terms could be provided (T/T,PAYPAL, WESTERN UNION)
|
Product parameter |
|
|
|
Model |
|
FD45 |
|
Rated lifting load |
kg |
4500 |
|
Load center distance |
mm |
500 |
|
Free lifting height |
mm |
160 |
|
overall length ( With fork/Without fork ) |
mm |
4120/3050 |
|
Width |
mm |
1400 |
|
Overhead guard height |
mm |
2230 |
|
Wheelbase |
mm |
1900 |
|
Minimum ground clearance |
mm |
150 |
|
Mast tilt angle (front/rear) |
% |
6°/12° |
|
Tire no. (before) |
|
300-15-20PR |
|
Tire no. (after) |
|
7.00-12-12PR |
|
Minimum turning radius (outer side) |
mm |
2820 |
|
Minimum right angle aisle width |
mm |
4830 |
|
Fork size |
mm |
1070x150x50 |
|
maximum working speed(Full-load/No-load ) |
km/h |
18/19 |
|
maximum lifting speed(Full-load/No-load ) |
mm/s |
420/460 |
|
maximum gradeability(Full-load/No-load ) |
% |
15/20 |
|
Forklift weight |
kg |
5860 |
|
Engine model |
|
XINCHAI/ISUZU/MITSUBISHI |
